Movincool Office Pro 12 Portable A/C Unit Air Conditioner 12K BTU - 10H12

The MovinCool Office Pro 12 is a portable, self-contained spot air conditioner designed primarily for office environments with heat-generating equipment like computers, servers, and networking gear. Introduced around 2017 (part of the legacy Office Pro series by DENSO/MovinCool), it provides targeted cooling without permanent installation—simply roll it into the room, plug it in, and set it up. It's ideal for supplemental cooling in small to medium spaces (up to about 400 sq ft, depending on conditions), server rooms, or emergency backups. This model emphasizes reliability for commercial use, with a focus on protecting sensitive electronics from overheating shutdowns.

Key Specifications

Here's a summary of the main technical specs based on manufacturer data for the 2017

Feature Details

Cooling Capacity

12,000 BTU/hr (total); ~10,200 BTU/hr effective under standard conditions (95°F indoor/outdoor)

Voltage/Power

115V, 1-phase, 60 Hz; 15A recommended fuse; ~1.7 kW power draw

Power Cord

10 ft with NEMA 5-15 plug

Dimensions (H x W x D)

Approx. 32" x 18" x 28" (compact footprint ~4 sq ft)

Weight

~85 lbs (portable with casters)

Airflow

~300 CFM (cool air discharge); adjustable fan speeds

Refrigerant

R-410A (environmentally friendly, non-ozone depleting)

Drain System

Internal condensate tank with overflow switch; optional continuous drain hose

Noise Level

~55-60 dB (comparable to a conversation)

Operating Range

Cooling: 60°F to 110°F ambient; humidity up to 80% RH

Controls

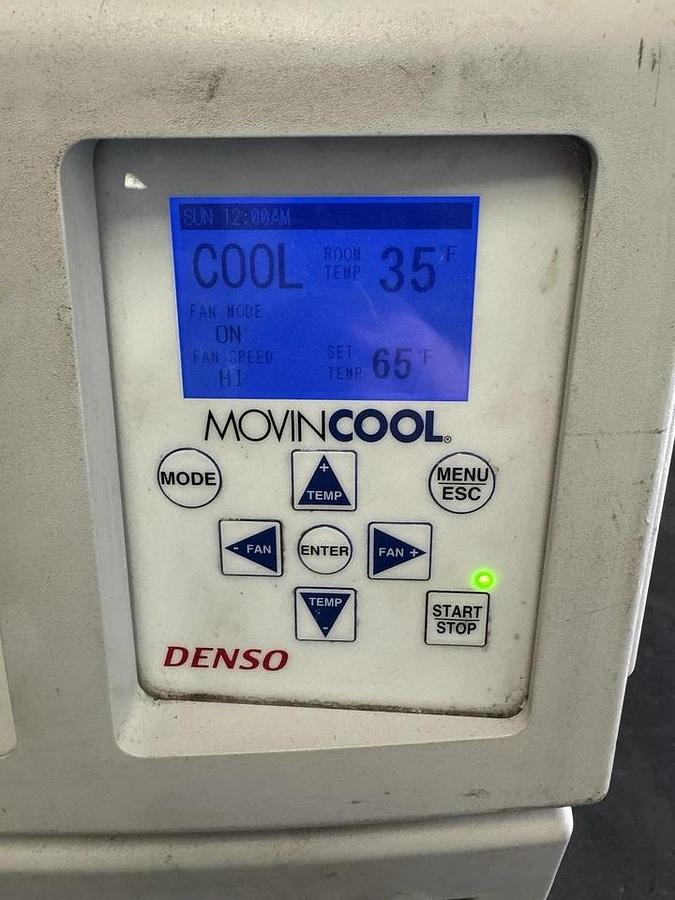

Digital programmable controller with LCD display, timer, and set-point temperature adjustment

These specs make it suitable for standard 115V/20A circuits without special wiring.

Features

• Portable Design: Built-in casters for easy mobility; no costly installation required. Exhaust duct (included 10-12 ft flexible hose) vents hot air out a window or door via an optional kit.
• Spot Cooling Focus: Directs cool air precisely where needed (e.g., via adjustable louvers) to cool hotspots like server racks or desks efficiently.
• Smart Controls: Programmable thermostat for auto on/off; fan-only mode for circulation; self-diagnostic LCD codes for error alerts (e.g., "Tank Full" for condensate overflow).
• Safety Features: Ground-fault circuit interrupter (GFCI) compatible outlet recommendation; automatic shutoff for low refrigerant or full drain tank; no exposed hot surfaces.
• Accessories Included/Available: Power cord, exhaust hose, window vent kit; optional ceiling tile exhaust adapter (HDK-12), duct extensions, or remote sensors for zoned cooling.
• Efficiency: Uses a capillary tube expansion system for reliable, low-maintenance operation; energy-efficient for its class, though not as quiet or eco-focused as newer inverter models.

Installation and Setup Tips

1. Site Preparation: Place on a level, hard surface near a 115V outlet. Ensure 12-18" clearance around vents for airflow. Vent exhaust outdoors—avoid recirculating hot air.
2. Exhaust Setup: Attach the flexible duct to the rear exhaust port and secure to a window using the included slider kit. For drop ceilings, use the HDK-12 adapter to route through a tile.
3. Drain Handling: The unit evaporates most condensate, but in high-humidity areas, connect a hose to the drain port for gravity drainage to a floor drain.
4. Power On: Plug in, set desired temperature (e.g., 72°F), and select cool mode. It typically cools a space 10-15°F below ambient in 30-60 minutes.
5. Pro Tip: For 2017 models, register on the MovinCool website (movincool.com) for free access to updates or extended support.
