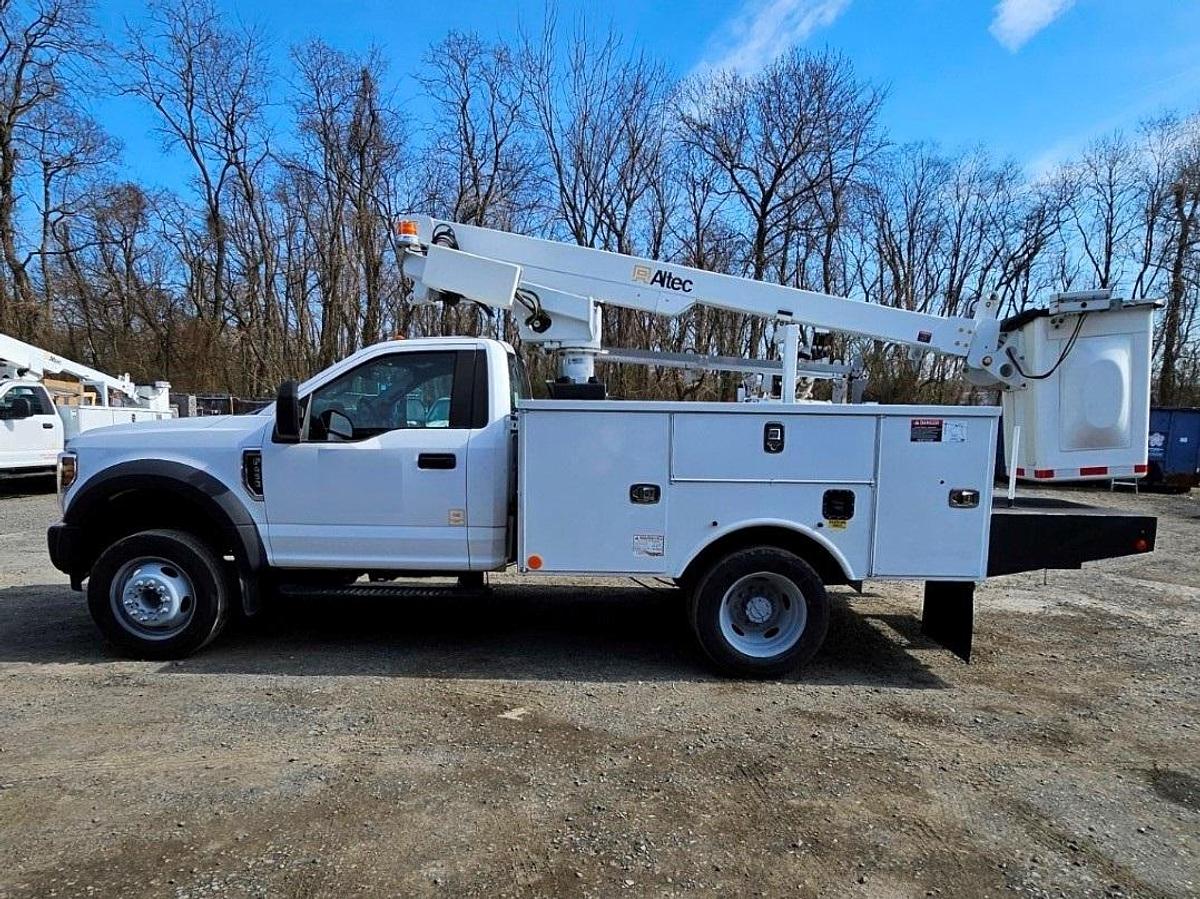

Altec AT200A Bucket Boom on 2018 Ford F450 Reg Cab Utility Truck - R02758

Altec AT200A Single-man bucket boom specifications

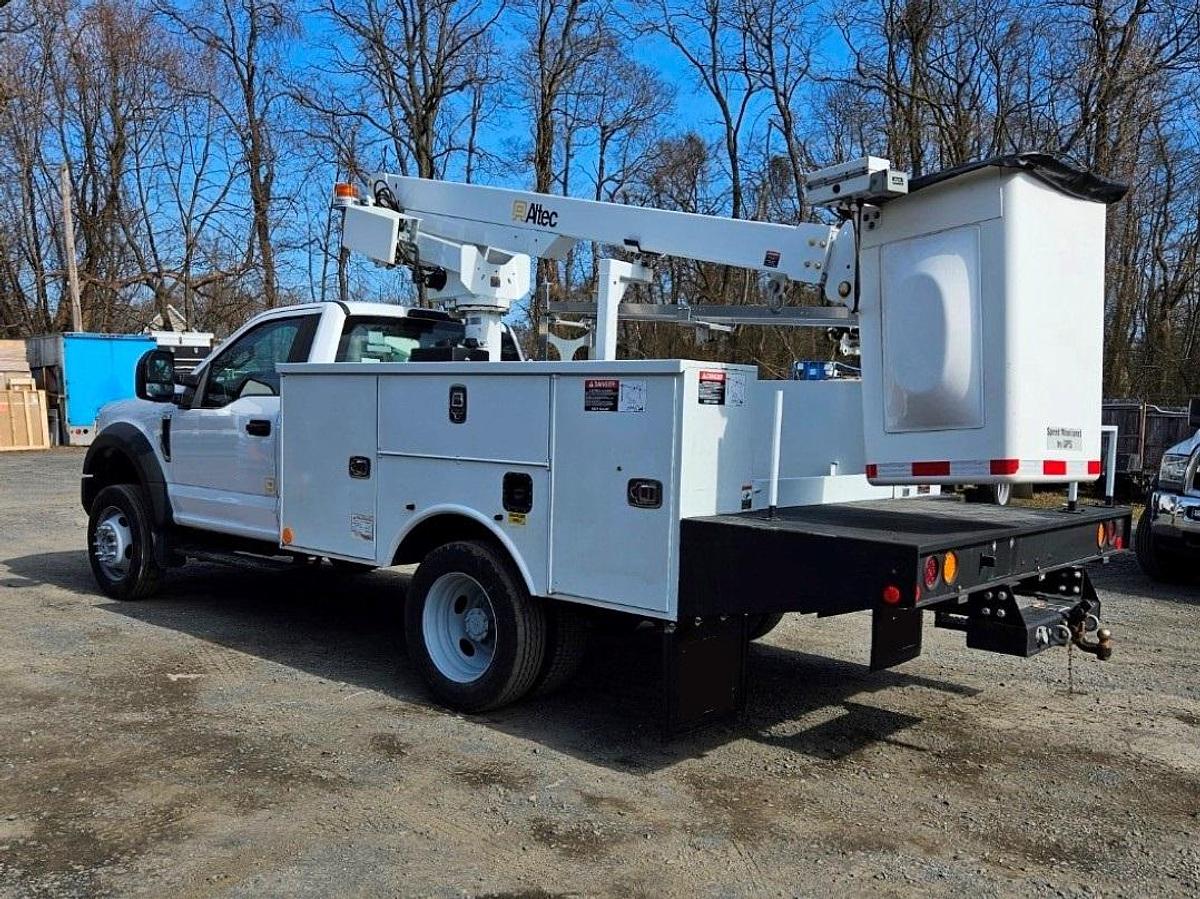

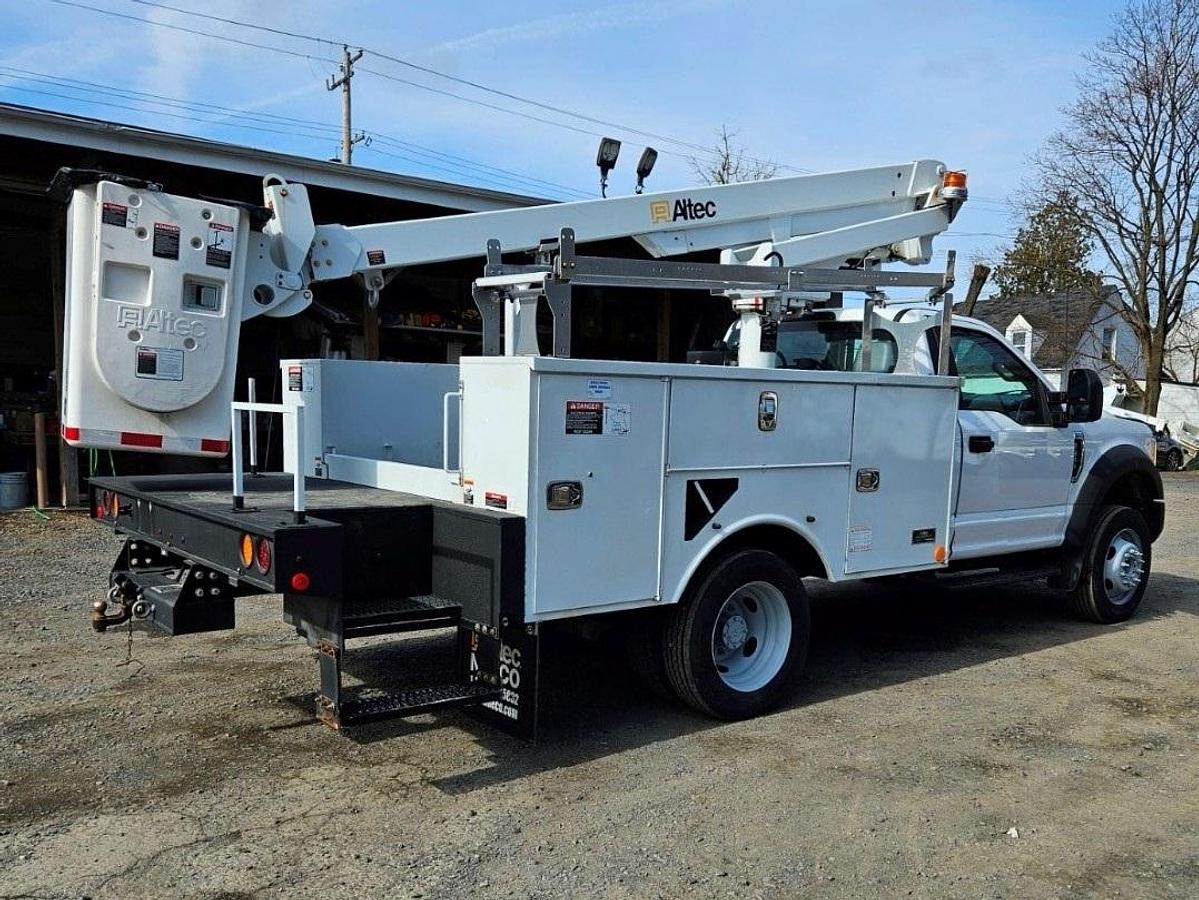

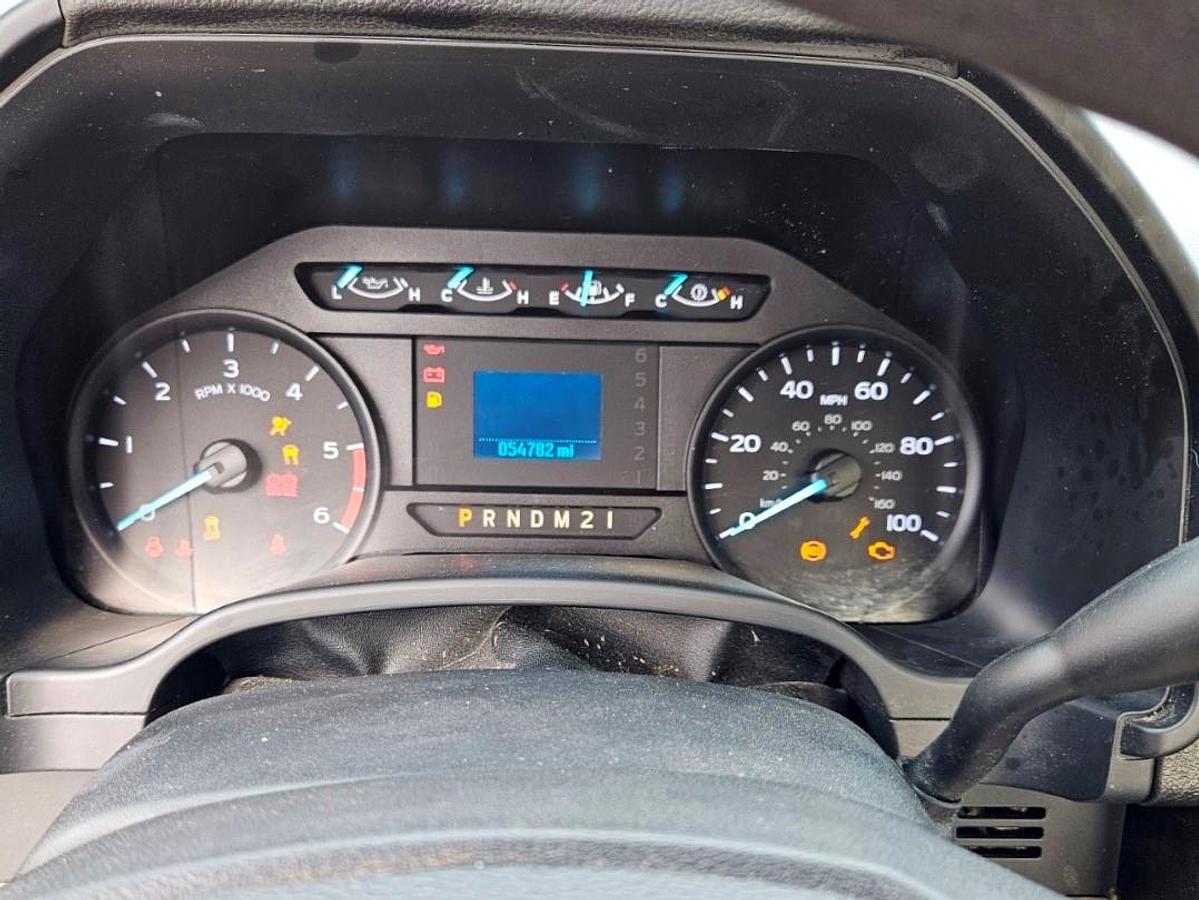

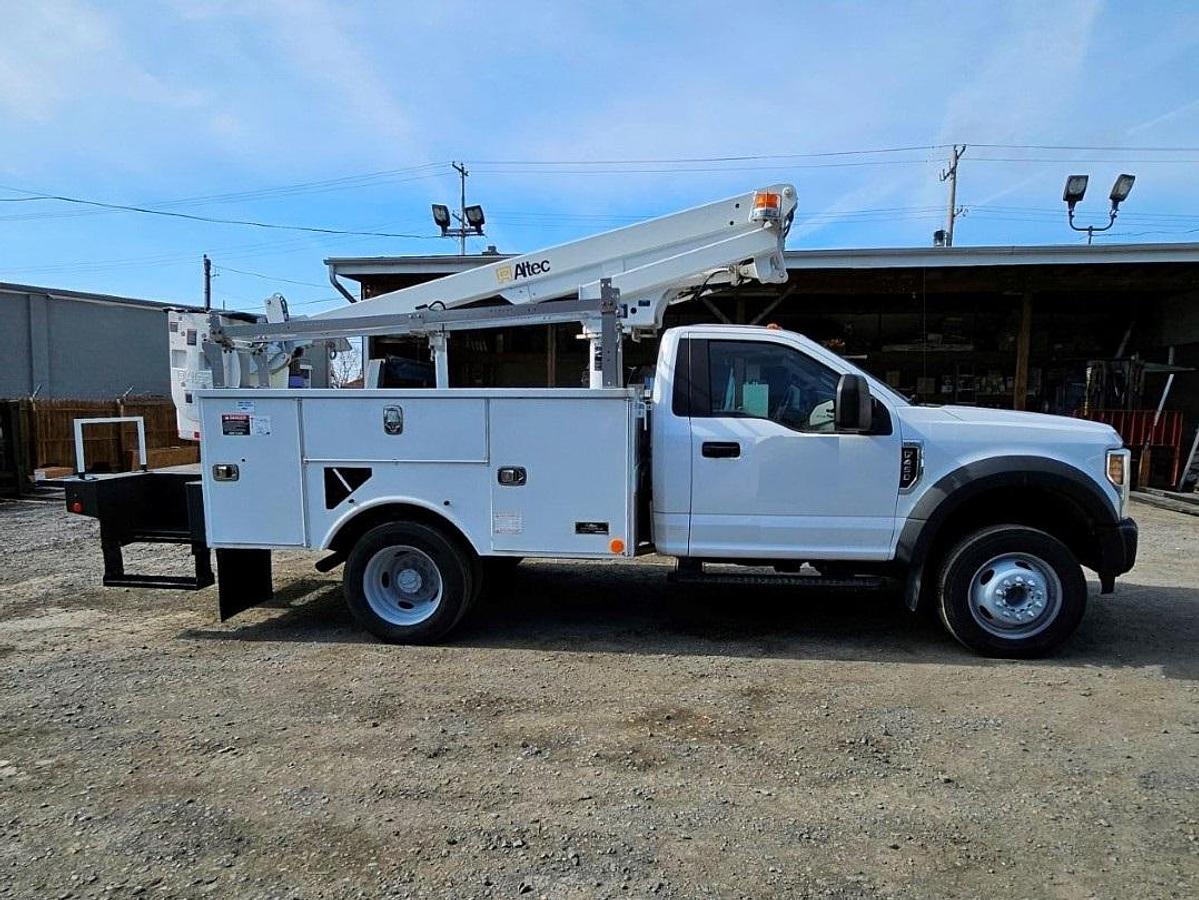

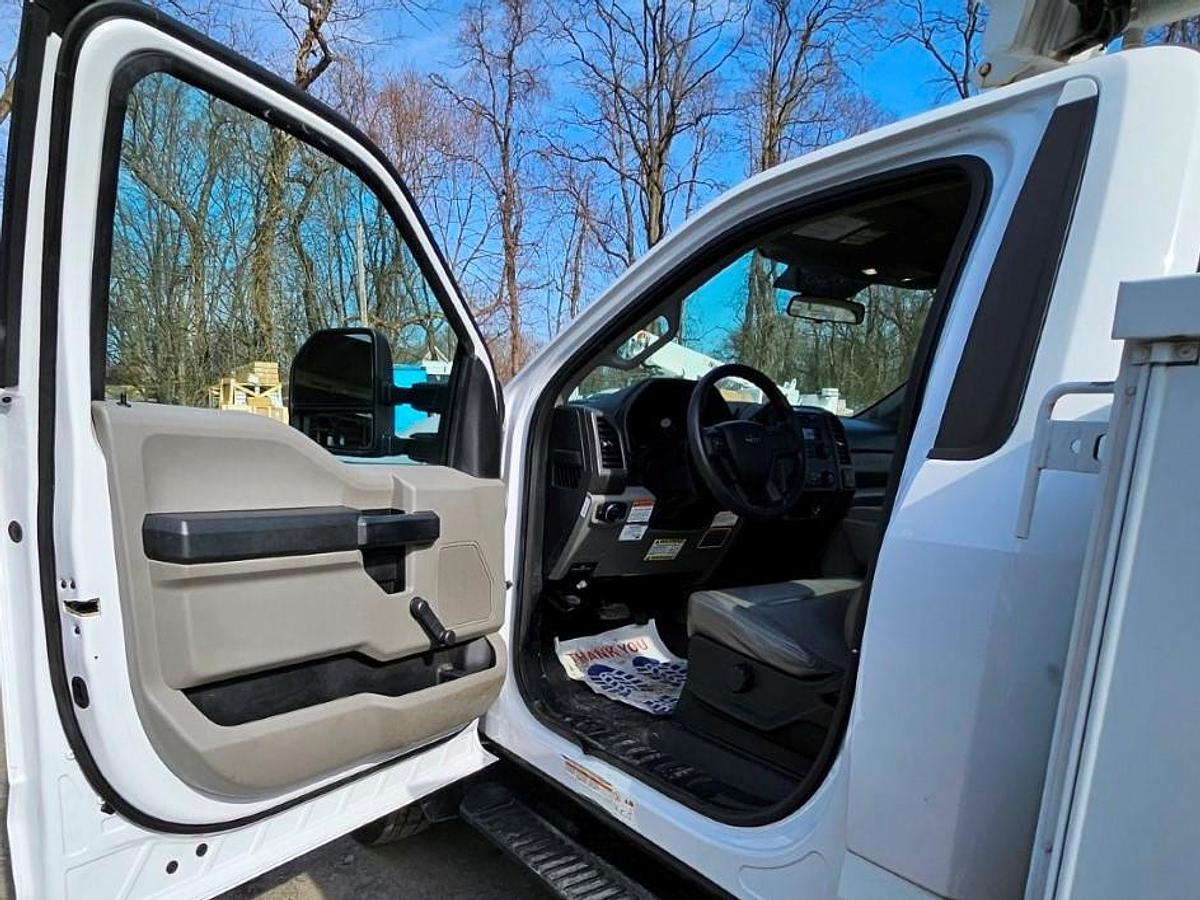

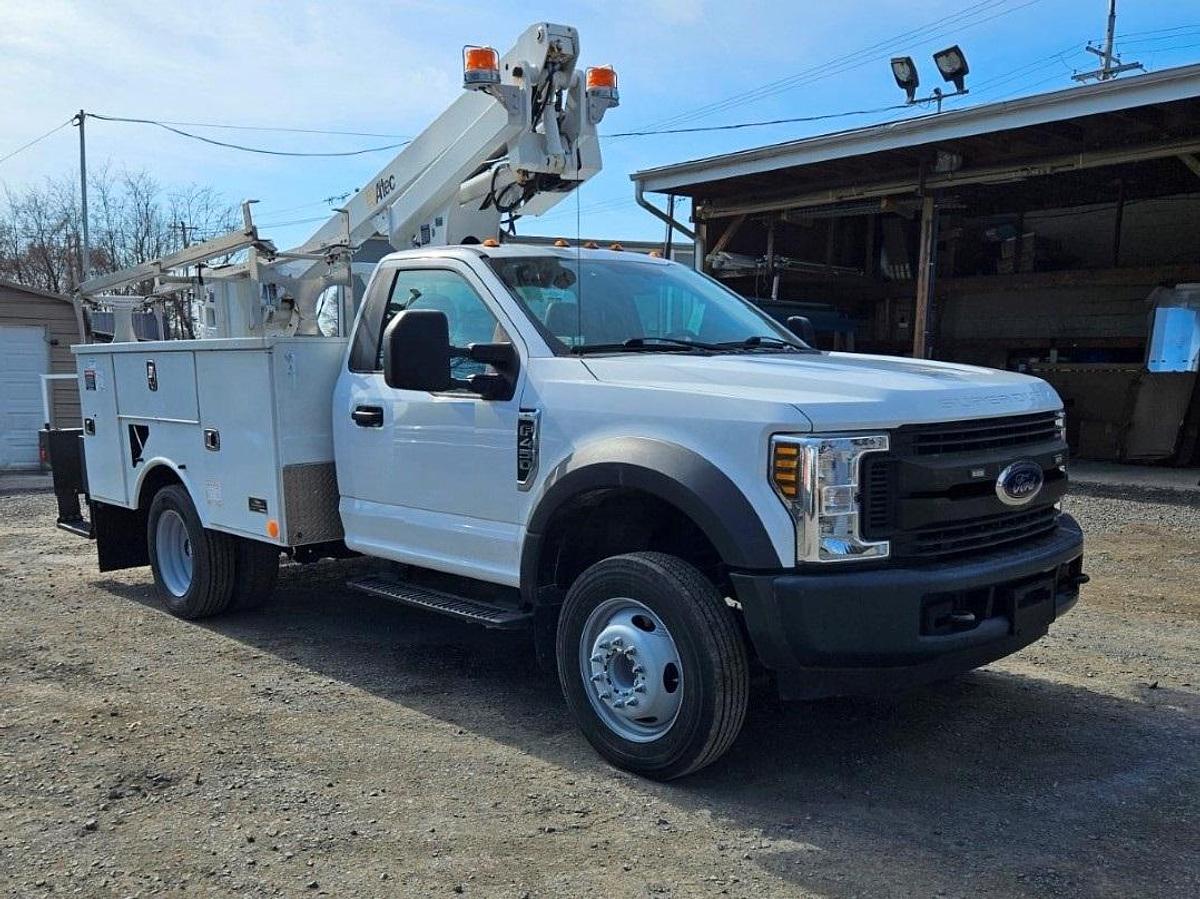

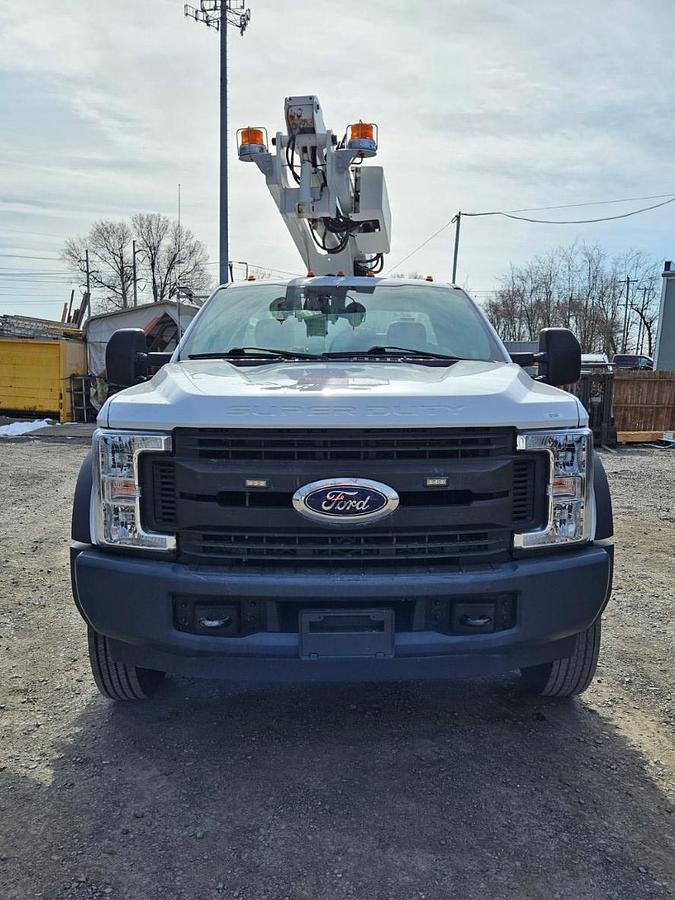

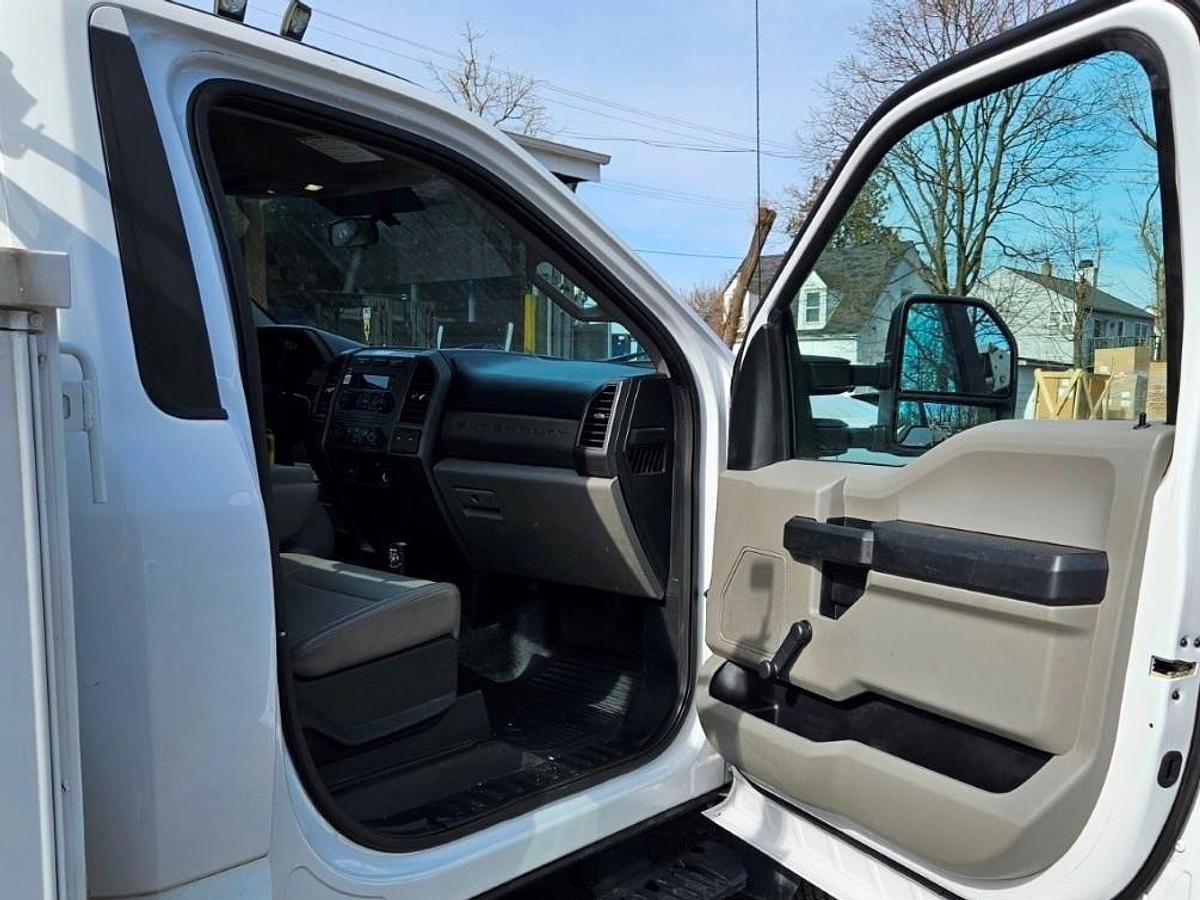

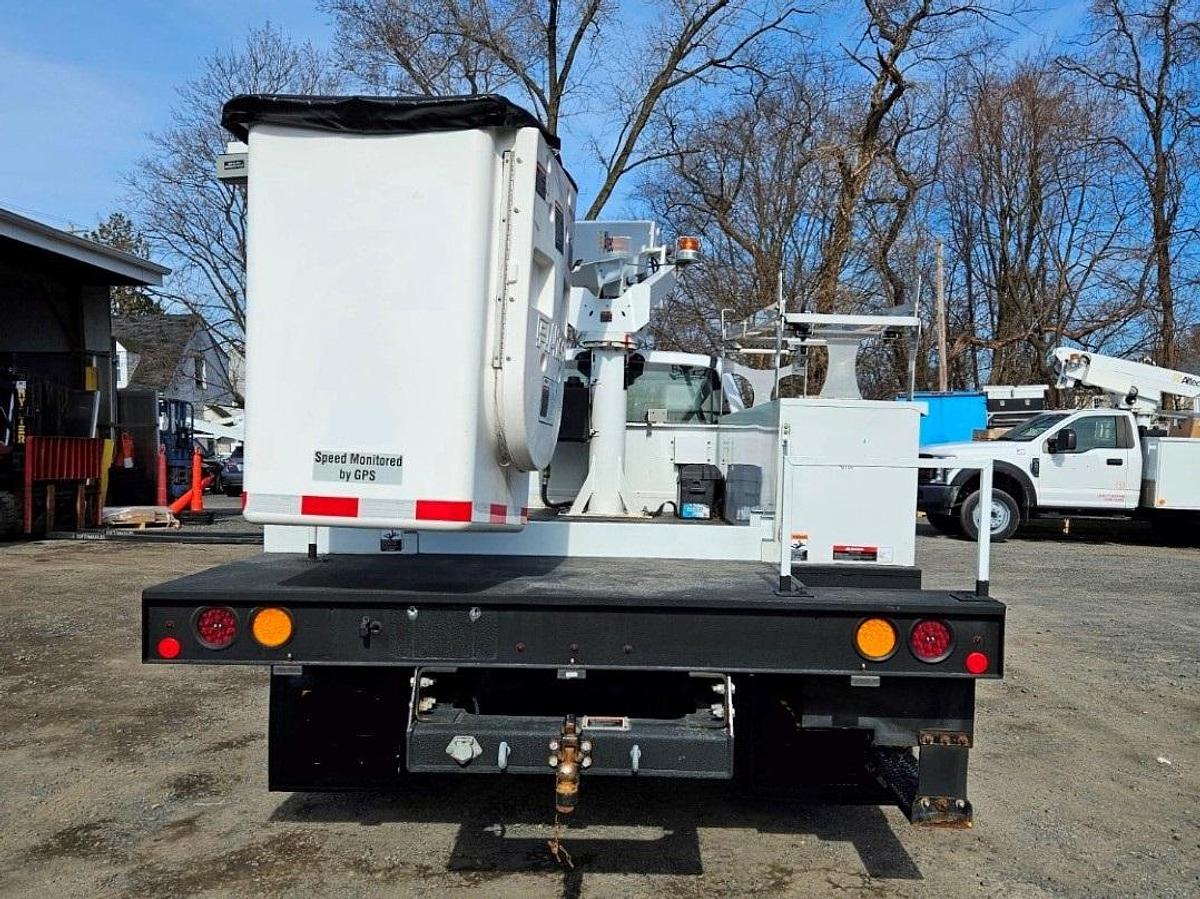

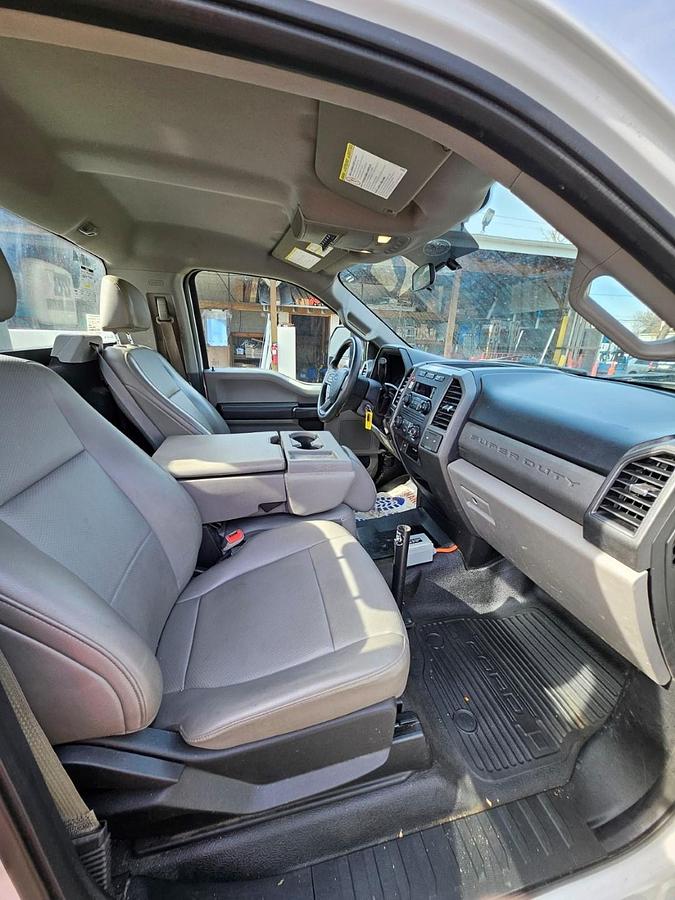

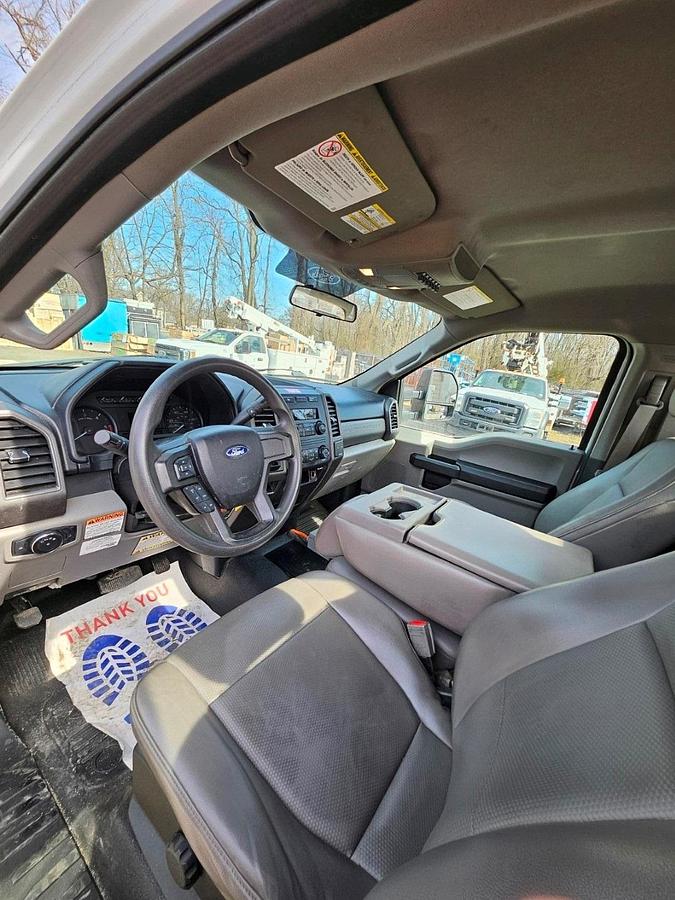

2018 Ford F450 XL Non CDL Altec 31ft Bucket Truck. This truck is powered by a 298HP Ford V10 gas engine and an automatic Ford transmission with 54,782 miles. The interior features three seats, A/C, AM/FM radio, tilt-tele, cruise control and trailer hitch. This truck sits on a spring suspension and 19.5 tires with steel rims and simulators. The Bucket is a 36-foot working height 2018 Altec AT200A that has a 350LB capacity one man bucket with controls. (Boom is inspected until 02/2026) The truck has an Altec Utility body and is equipped with a 7-way flat in the rear and an 8-ton ball tow hitch. We offer financing options and nationwide shipping.

FEATURES OPTIONS

• Non-Insulating Aerial Device

• All Steel Telescopic Boom Construction

• Hydraulically Extended Inner Boom

• Engine Start/Stop at Upper and Lower Controls

• Open-Center Hydraulic System

• 120 VAC Circuit at Boom Tip with GFI Outlet

• Minimum Chassis Requirement of 10,500 lb (4,763 kg) GVWR, 60 in (1,524 mm) CA or 84 in (2,134 mm) CA

• Pedestal or Bridge Mount

• Choice of Platform:

» Side or End-Mount

» Walk-In Round or Rectangular Splicer

• Hydraulic Leveling

• Electric/Hydraulic Single-Handle Variable Speed Upper Controller

• Inverter for 110V Power

• Variable Speed Controls

• Two-Speed Controls

• Choice of Hydraulic Reservoir:

» Bed-Mount

» Pedestal-Mount

• Airline to Platform

• Canopy and Curtain Assembly

• Manual Lowering Valve

• Heater for Platform

• Seat for Platform

• Tool Pouches and Trays

• Steel and Fiberglass Body Configurations are Available

Recommended safety equipment, available through Altec Supply, include fall protection system, wheel chocks, platform cover and strobe lights on turntable.

Ground to Bottom of Platform

End-Mount 30.1 ft (9.2 m)

Additional Capacity End-Mount 28.4 ft (8.7 m)

Side-Mount 30.1 ft (9.2 m)

Working Height End-Mount 35.1 ft (10.7 m)

Additional Capacity End-Mount 33.4 ft (10.2 m)

Side-Mount 35.1 ft (10.7 m)

Maximum Reach from Centerline of Rotation

End-Mount 22.7 ft (6.9 m)

Additional Capacity End-Mount 21.0 ft (6.4 m)

Side-Mount 20.7 ft (6.3 m)

Platform Capacity

End-Mount 300 lb (136 kg)

Additional Capacity End-Mount 350 lb (159 kg)

Side-Mount 350 lb (159 kg)

Boom Articulation -13.5 to 80°

Stowed Travel Height 11 ft (3.4 m)
