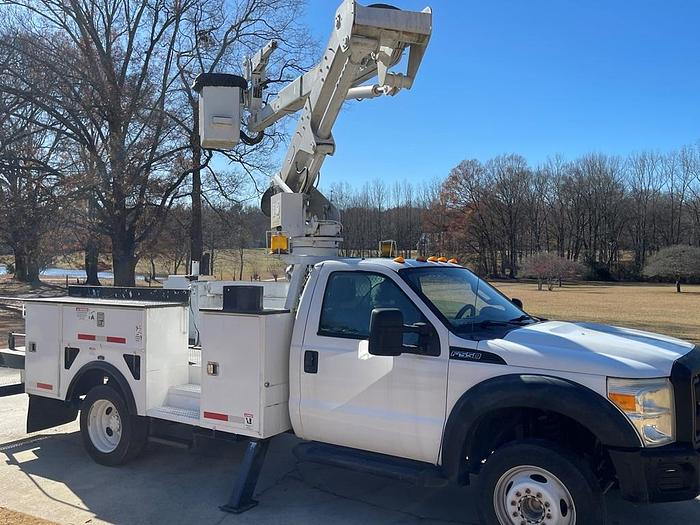

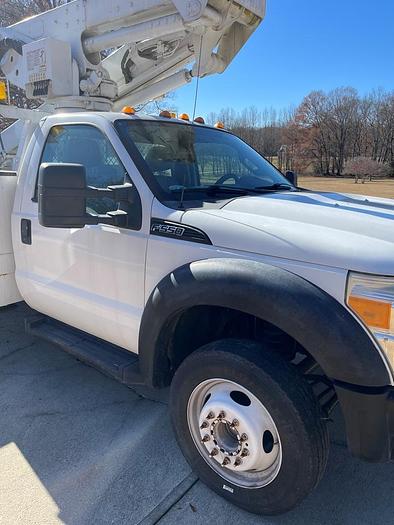

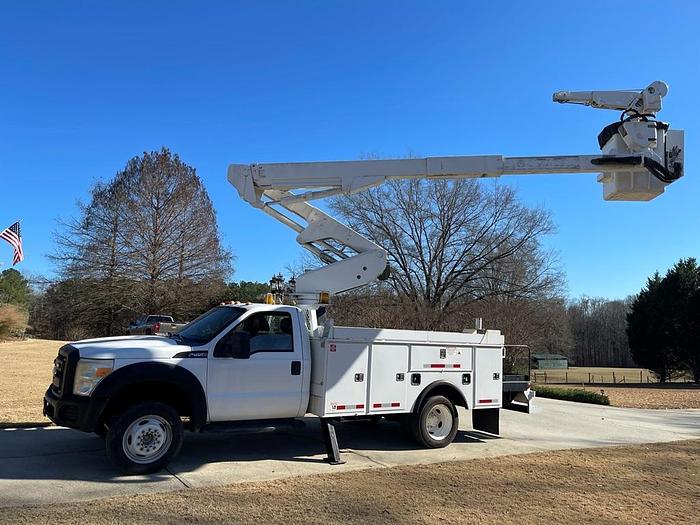

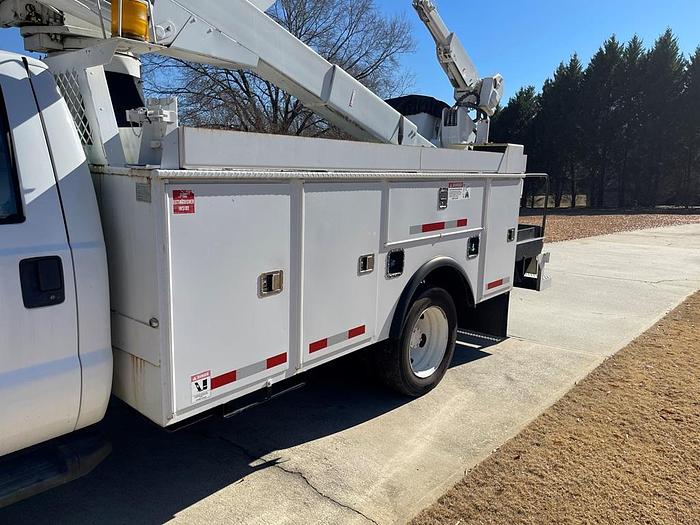

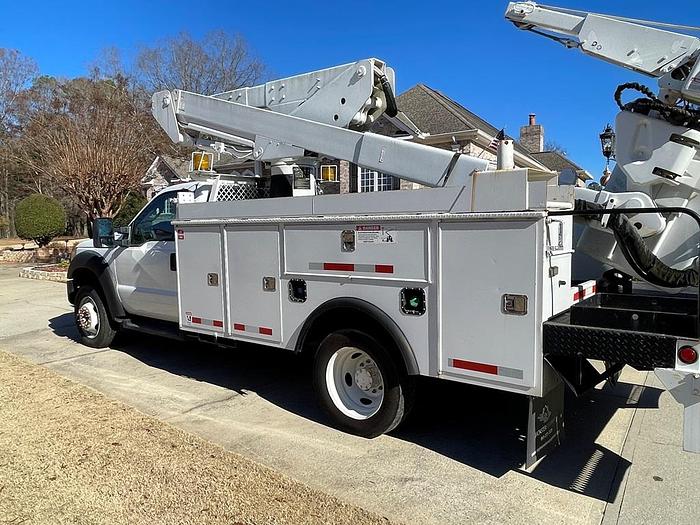

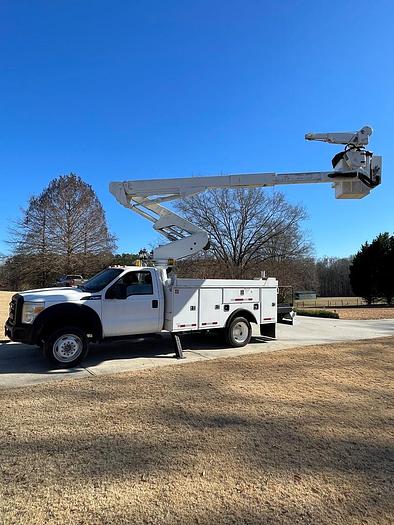

Versalift VST40I on 2012 Ford F550 Reg Cab Utility - M14603

45ft Insulated Bucket Boom with Material Handler

Versalift VST-40-I Bucket Boom Truck

Type: Articulated Telescopic Aerial Lift

Height to Bottom of Platform: 40 ft (12.2 m)

Working Height: 45 ft (13.7 m)

Horizontal Reach: 27 ft 9 in (8.5 m)

Standard Platform Capacity: 300 lbs (136 kg)

Maximum Platform Capacity: 450 lbs (204 kg)

Outer Boom Lift Eye Capacity: 500 lbs (227 kg)

Stowed Travel Height: 10 ft 4 in (3.15 m)

Weight of Lift (without oil and mounting hardware): 2,335 lbs (1,059 kg)

Rotation: 370° non-continuous

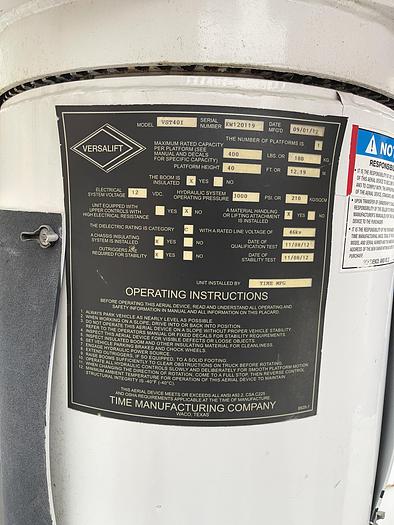

Insulation:

Insulated upper boom with a dielectric rating suitable for high-voltage work (typically Category C per ANSI A92.2, up to 46 kV).

Features like TruGuard® and Electroguard® systems for dielectric isolation and operator safety, even when the boom is fully retracted.

Boom Details:

Inner Boom Extension: 116 in (2.9 m)

Outer Boom Articulation: -14° to +74°

Lower Boom Articulation: -7° to vertical

Upper Boom Fully Retracted Flow: 42 in (1.07 m)

Optional Lower Boom Insert: 12 in (0.3 m) for additional insulation gap

Hydraulic System:

Operating Pressure: 2,250 PSI (158 kg/cm²)

Flow Rate: 3 GPM (11 LPM) for ENH/EIH models; 2 GPM (8 LPM) for NE models

System Type: Open center

Filtration: 10-micron return, 100-mesh suction

Temperature Range: -40°F (-40°C) to 125°F (52°C)

Chassis Requirements: Typically mounted on a chassis with a GVWR of around 19,500 lbs, though this varies based on configuration and customer needs.

Additional Features:

Lightweight design for increased payload capacity.

Side-mounted telescopic upper boom for low stowing and easy platform access.

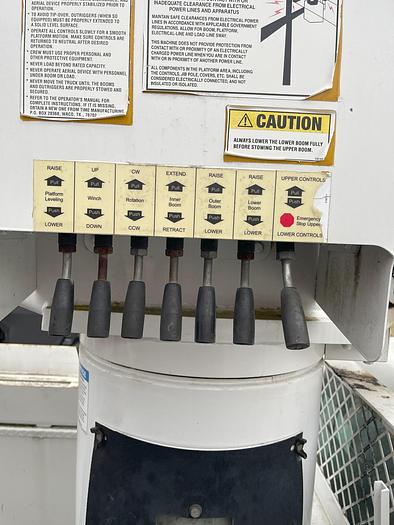

Full hydraulic controls with durable metal handles and linkages.

Notes

The VST-40-I is engineered for safety and reliability in high-risk electrical utility work, with a robust insulated design to protect operators in high-voltage environments.

Customization options (e.g., material handling jib, platform elevator) may alter some specs, such as capacity or reach, depending on the build.
