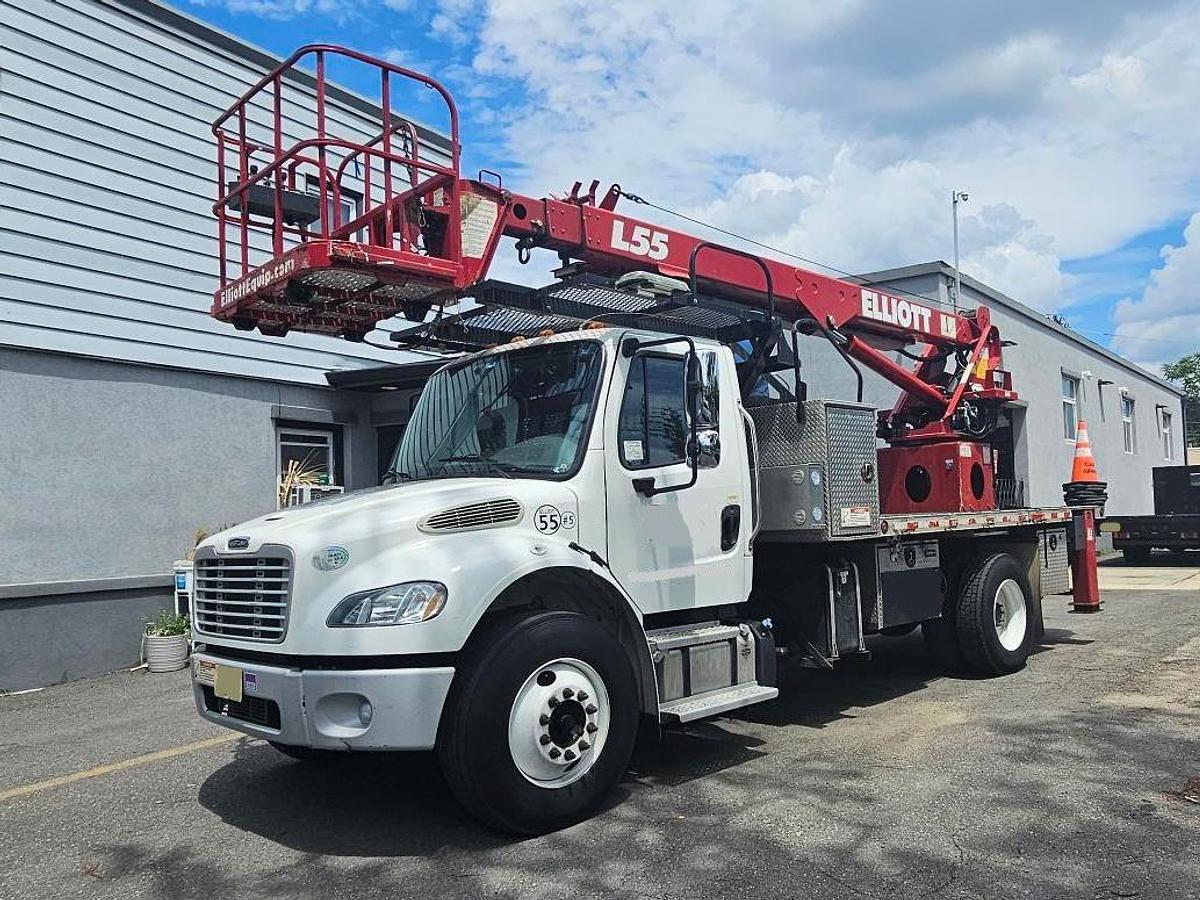

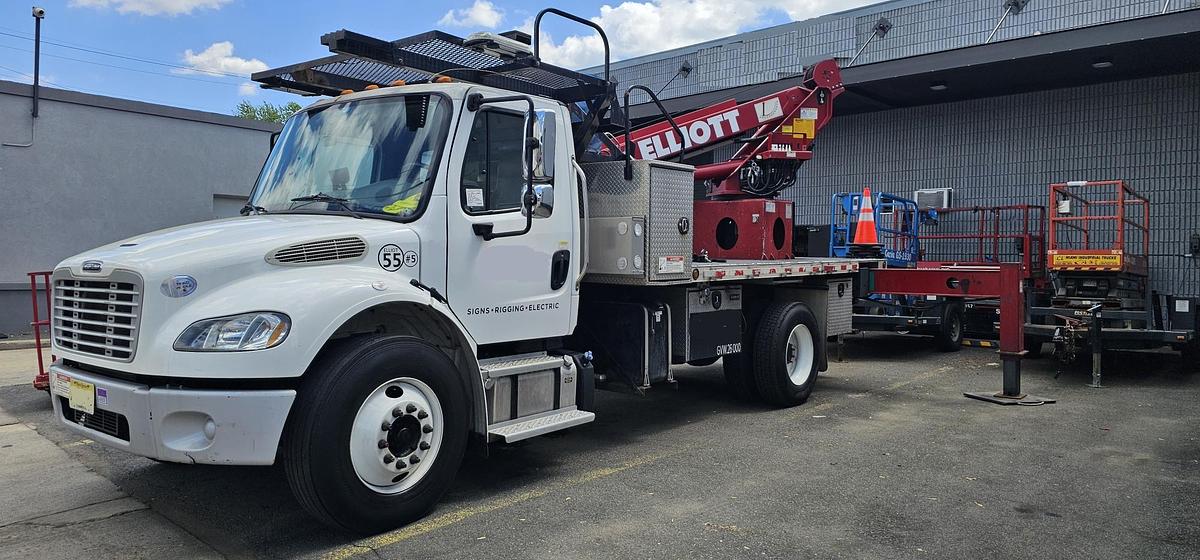

Elliott L55R Sign Crane on 2019 Freightliner M2-106 Reg Cab Flatbed Truck - MM6930

2019 Elliott L55R on a 2019 Freightliner M2-106 Regular Cab Flatbed Truck.

Technical Specs

WORKING HEIGHT 58′ / 17,7 M

WORKING SIDE REACH 51′ / 15,5 M

BOOM SECTIONS 3

PLATFORM TYPE EZR REMOVABLE

PLATFORM CAPACITY 500 LB / 227 KG

PLATFORM SIZE 30″ X 54″ / 76 X 137 CM

MAIN WINCH CAPACITY 5,900 LB / 2676 KG

OUTRIGGER TYPE REAR OUT-DOWN

OUTRIGGER SPREAD REAR 18′ / 5,5 M

UNIT WEIGHT (BARE) 12,000 LB/5443 KG

OVERALL HEIGHT 11’8”/3,5M

RECOMMENDED CAB TO AXLE (CA) 120” / 305 CM

RECOMMENDED GVWR 25,999 LB / 11 793 KG

Elliott’s L55 HiReach features a 58′ working height and a 30″ x 54″ two-man work platform with a 600 lb capacity. The three-section hydraulic boom offers smooth functionality and a precise ‘point and shoot’ ride. The work platform is hydraulically self-leveling and hydraulically rotating to get you to the work area safely and comfortably. As with other HiReach, the L55 HiReach is available with a main winch (5,900 or 2,000 lb) and Elliott’s ‘Office in the Sky’ external cable carrier system to bring your tools into the work platform.

Key Benefits

The steel boom extends hydraulically without cables or chains for reduced maintenance and a smoother ride

Elliott’s Dynasmooth upper work platform control system includes a foot enable switch and individual joysticks with hi/lo range for excellent sensitivity adjustment

The L55 model does not have side reach envelope limits, allowing the operator to boom up and out in any direction without restriction (within chart capacity limits)

Oversized turret and bearing provide long-term reliability and excellent stability

Optional main boom winch allows for material handling with the work platform attached, or removed

One parts/labor warranty and lifetime structural warranty
